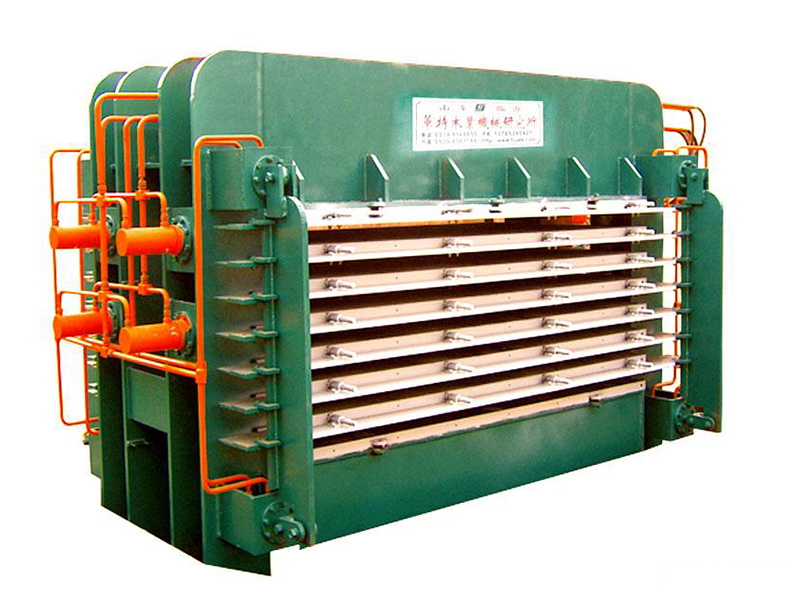

Lateral Pressure2. 5 layers 400T hot press （Width of the producted board:2440×1220mm） Quantity and Diameter of Cylinder 2个¢320 (（Wuxi、 Anti-scrape、Alloyed material）） Stroke of Cylinder 500mm Integral qulity drilling board 2700×1370×42mm(kunshan) Separation between layers 100mm Width of Upper、 Bottom and Movable crossbeam 900、800、400mm Width of plate main frame 35、22、12mm Width of the Movable crossbeam board 22mm Noloade closing time About 30S Hydraulic systerm Semi-Automatic controlled Hydraulic systerm compression resitance 25MPa Main motor 7.5KW Presurized motor 5.5KW Main pump 100：100double connection lamina oil pump Presurized pump 10ml/rev plunger pump Demensions of Main frame 3560×1370×3220mm
